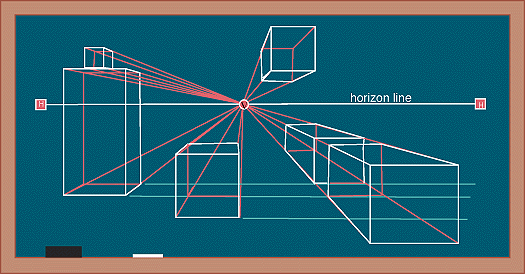

Convergence Lines are in red, as well as, construction lines of those areas that are obscured from view.
In the diagram above, you will notice that all the diagonals recede to the central vanishing point. In one point perspective all horizontals and verticals do not change. Objects that are above the viewer's horizon line are viewed from underneath (they are above your vision). Objects that are below the viewer's horizon line are viewed with their tops showing. Any object that straddles the horizon line, like the large object on the left, does not show top or bottom because these are obscured from the viewer. Remember that this system will only work if you are parallel and perpendicular (90 degree angles) to the objects that you are drawing.
Hint: If an object is directly in front of the vanishing point, only the front is visible and all sides are obscured.
Hint: Notice the light green lines that run horizontally along the bottoms of the objects at the bottom of the page. By using these lines, one can find approximate placements for other objects. The two objects in the lower right hand corner are not only lined up as they recede to the vanishing point, they are also lined up along their respective front and back edges. If you have two or more objects that share a common horizontal (or vertical) you can align them easily by finding points and edges in common.
If you examine Vermeer's Little Street, you will notice that all the diagonal lines appear to recede to a point within a window on the second floor of the building in the center of the painting. This indicates that the artist's eye level was also above street level. Probably looking out a second floor window across the street. Look at how the chimnies on the left hand side of the painting all line up to create a diagonal which leads to the vanishing point. Even the cobblestones in the street adhere to this rule.
